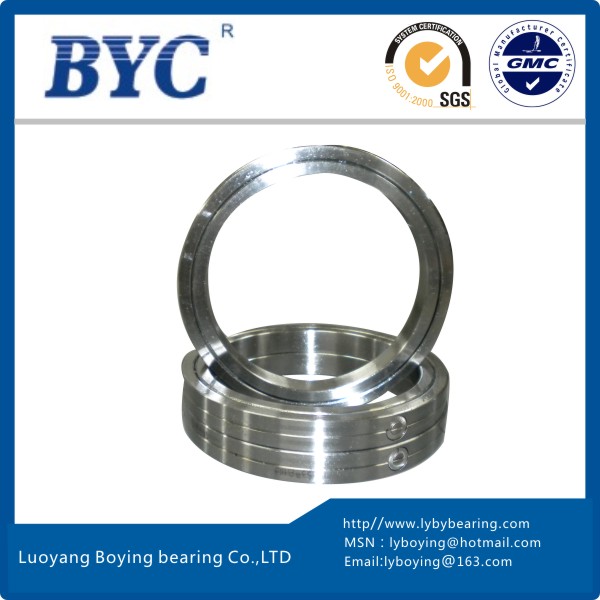

SX011828 (dxDxB:140x175x18mm) Crossed Roller Bearings|Robotic Bearings|BYC
Author： Release time：2016-05-19 Browse times：2095
| SX011828 (dxDxB:140x175x18mm) Crossed Roller Bearings|Robotic Bearings|BYC | |||||||||||
| A . Crossed Roller Bearings Parameters | |||||||||||
| Brand- | BYC | ||||||||||
| Model number- | SX011828 | ||||||||||
| Inner ring(mm)- | 140 | ||||||||||
| Outer ring(mm)- | 175 | ||||||||||
| Width(mm)- | 18 | ||||||||||
| Weight(Kg)- | 1.1 | ||||||||||
| Materials- | GCR15/GCR15SiMn | ||||||||||
| Precision- | P5/P4/P2 | ||||||||||
| Lubrication- | Grease lubrication | ||||||||||
| Rotating part- | Inner Ring Rotation | ||||||||||
| Load direction- | Multi-load | ||||||||||
| Structure- | Outer ring split | ||||||||||
| B . SX011828 Crossed Roller Bearings Specification Sheet | |||||||||||
 | |||||||||||
| Model Number | Main dimensions | Mounting dimensions | Basic load rating (radial) | weight | |||||||
| Inner ring d (mm) | Outer ring D(mm) | Roller pitch circle dp(mm) | Width B(mm) | Greasing hole φ | Chamfer r(min) | ds | Dh | C kN | C0 kN | Kg | |
| SX011828 | 140 | 175 | 157 | 18 | 1.5 | 1.1 | 156.3 | 157.7 | 45 | 96 | 1.1 |
| C . SX type Crossed Roller Bearings Details | |||||||||||
| Product Features | BYC Crossed roller bearings are lightweight, compact bearings with thinnest possible inner and outer rings with high rigidity, because of its vertical arrangement of cylindrical rollers with a 90°V groove through the separate spacers in the deep groove rolling surface. This special design allows just one bearing to carry loads in all directions including radial, axial and moment loads. | ||||||||||
| Series Introduction | SX standard type is a bearing similar to a RB standard type. The two separable outer rings are connected by locking ring | ||||||||||
| Series Model No. | SX011814,SX011818,SX011820,SX011824,SX011828,SX011832,SX011836,SX011840,SX011848,SX011860,SX011868,SX011860,SX0118/500 | ||||||||||
| Applications | Product Application •Industrial Robotic arm,Reducer drive •precision Turntable,NC rotary table •Rotation part of Machine tools •Inspection instrument,Medical equipment • Aviation equipment,Military radar etc | ||||||||||
| D . Installation for Cross roller Bearings | |||||||||||
| Installation for Cross roller Bearings-Click Here | |||||||||||
