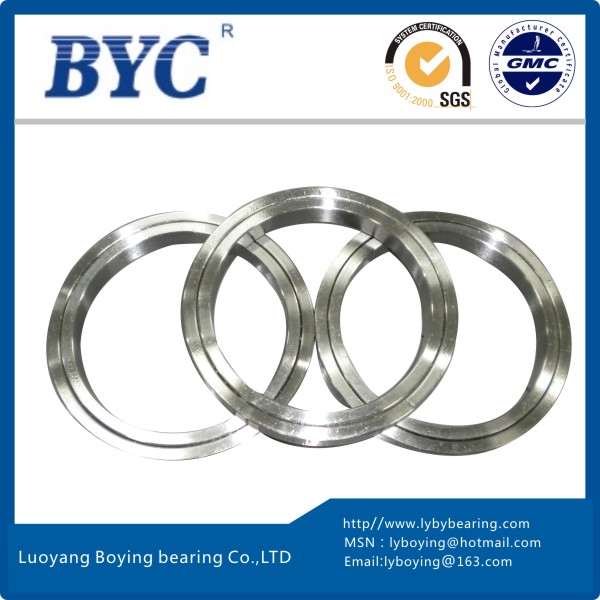

SX011824 (dxDxB:120x150x16mm) Crossed Roller Bearings|Robotic Bearings|BYC | |||||||||||
A . Crossed Roller Bearings Parameters | |||||||||||
Brand- | BYC | ||||||||||
Model number- | SX011824 | ||||||||||
Inner ring(mm)- | 120 | ||||||||||
Outer ring(mm)- | 150 | ||||||||||
Width(mm)- | 16 | ||||||||||
Weight(Kg)- | 0.8 | ||||||||||
Materials- | GCR15/GCR15SiMn | ||||||||||
Precision- | P5/P4/P2 | ||||||||||
Lubrication- | Grease lubrication | ||||||||||
Rotating part- | Inner Ring Rotation | ||||||||||
Load direction- | Multi-load | ||||||||||
Structure- | Outer ring split | ||||||||||
B . SX011824 Crossed Roller Bearings Specification Sheet | |||||||||||
Model Number | Main dimensions | Mounting dimensions | Basic load rating (radial) | weight | |||||||
Inner ring d (mm) | Outer ring D(mm) | Roller pitch circle dp(mm) | Width B(mm) | Greasing hole φ | Chamfer r(min) | ds | Dh | C kN | C0 kN | Kg | |
SX011824 | 120 | 150 | 135 | 16 | 1.5 | 1 | 134.4 | 135.6 | 27 | 59 | 0.8 |
C . SX type Crossed Roller Bearings Details | |||||||||||
Product Features | BYC Crossed roller bearings are lightweight, compact bearings with thinnest possible inner and outer rings with high rigidity, because of its vertical arrangement of cylindrical rollers with a 90°V groove through the separate spacers in the deep groove rolling surface. This special design allows just one bearing to carry loads in all directions including radial, axial and moment loads. | ||||||||||
Series Introduction | SX standard type is a bearing similar to a RB standard type. The two separable outer rings are connected by locking ring | ||||||||||
Series Model No. | SX011814,SX011818,SX011820,SX011824,SX011828,SX011832,SX011836,SX011840,SX011848,SX011860,SX011868,SX011860,SX0118/500 | ||||||||||
Applications | Product Application •Industrial Robotic arm,Reducer drive •precision Turntable,NC rotary table •Rotation part of Machine tools •Inspection instrument,Medical equipment • Aviation equipment,Military radar etc | ||||||||||
D . Installation for Cross roller Bearings | |||||||||||
Installation for Cross roller Bearings-Click Here | |||||||||||
