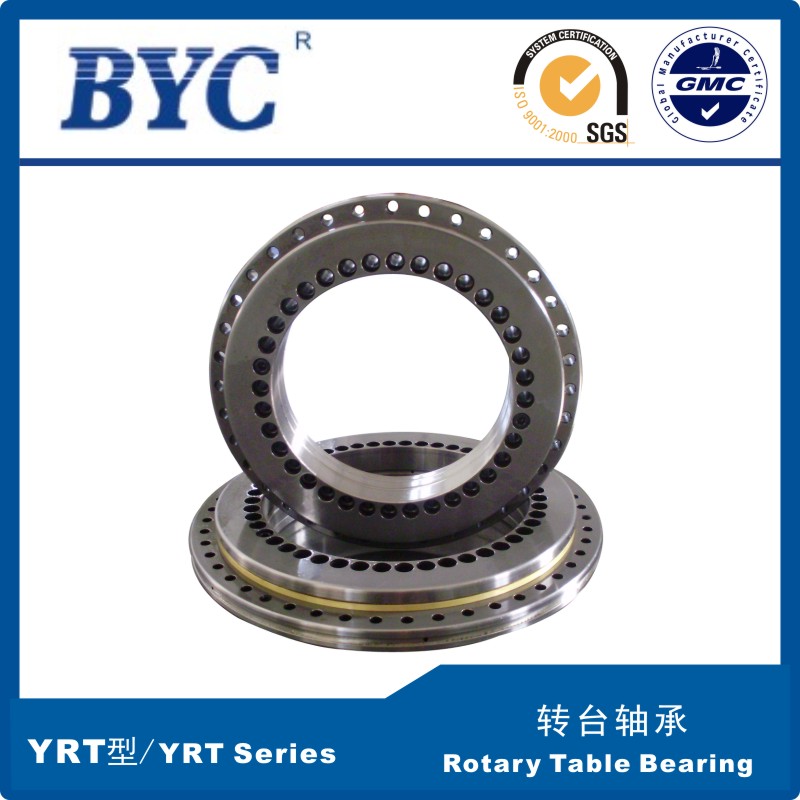

YRT (Axial/Radial Turntable Bearings)
YRT (Axial/Radial Turntable Bearings)

Starting quantity:1件

Product Featur…

ONLINE

Product

Features

   Axial radial bearings YRT are axial and radial combined cylindrical roller bearings, including two thrust needle roller bearings and a radial cylindrical roller bearing with the combination of axial and radial preload, For the convenience of transportation and fixing, two or three symmetrical screws are fastened to the two rings in order to prevent rollers and rings generating collisions which influence bearing accuracy.

Series

Introduction

   Axial/radial bearings YRT series rotary table bearings|Turntable bearing

Series

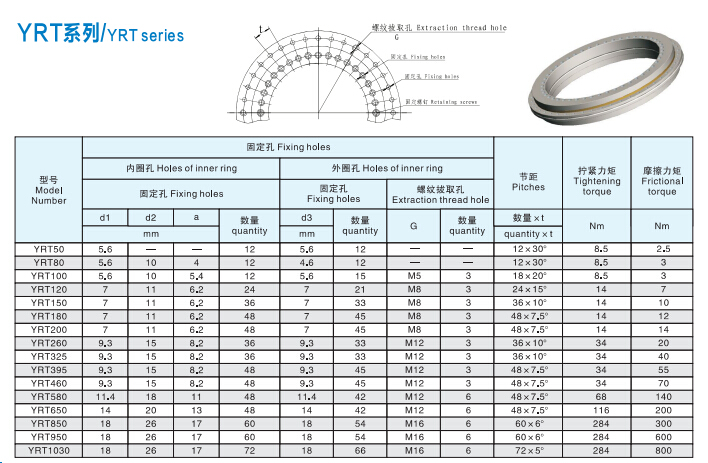

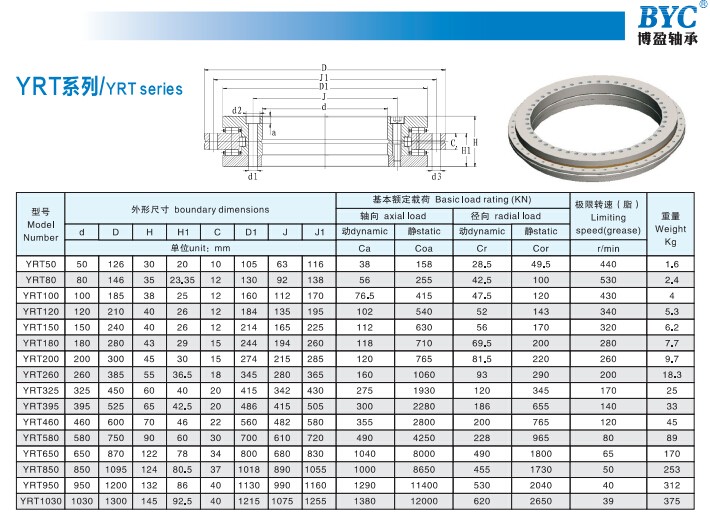

Model No.

(Click the link below to view detailed parameters of each model)

YRT50YRT80YRT100YRT120YRT150YRT180YRT200

YRT260YRT325YRT395YRT460YRT580YRT650YRT850

YRT950YRT1030YRT1200

Applications

•Precision machine tools

•precision Turntable, NC rotary table

•Rotation part of Machine tools

•Inspection instrument,Medical equipment

•Indexing plate of other precision machines etc

3D Model of Crossed Roller Bearing and YRT Rotary Table Bearing for Robotic and CNC design,

 The link is: http://yun.baidu.com/share/home?uk=35432805&view=album






YRT Rotary Table Bearing Installation Instructions-BYC

YRT Rotary Table Bearing Installation Instructions-BYC.pdf
