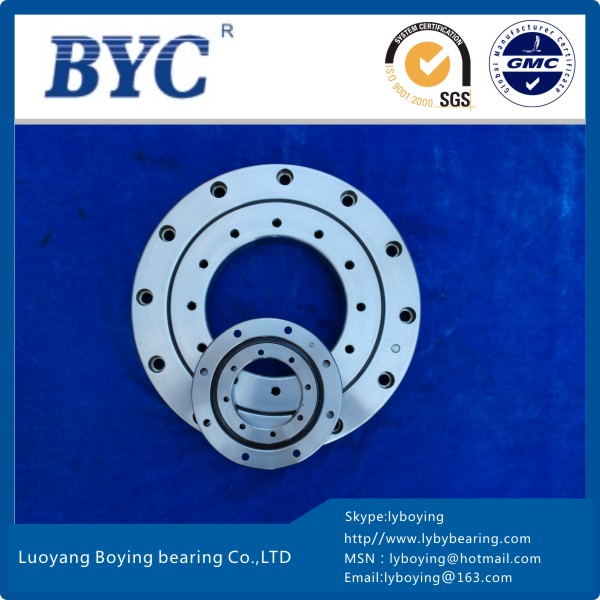

CRBF8022ATUUT1 (IDxODxThick:80x165x22mm) Crossed Roller Bearings|Robotic Bearings|BYC | |||||||||||
A . Crossed Roller Bearings Parameters | |||||||||||
Brand- | BYC | ||||||||||
Model number- | CRBF8022ATUUT1 | ||||||||||
Inner ring(mm)- | 80 | ||||||||||
Outer ring(mm)- | 165 | ||||||||||
Width(mm)- | 22 | ||||||||||
Weight(Kg)- | 2.6 | ||||||||||
Materials- | GCR15/GCR15SiMn | ||||||||||
Precision- | P5/P4/P2 | ||||||||||
Lubrication- | Grease lubrication | ||||||||||
Rotating part- | Inner ring/Outer ring | ||||||||||
Load direction- | Multi-load | ||||||||||
Structure- | Integrated Inner/Outer Ring,Mounting Hole in Outer ring | ||||||||||
B . CRBF8022 Crossed Roller Bearings Specification Sheet | |||||||||||
Model Number | Main dimensions | Mounting dimensions | Basic load rating (radial) | weight | |||||||
Inner ring d (mm) | Outer ring D(mm) | Roller pitch circle dp(mm) | Width B(mm) | Greasing hole φ | Chamfer r(min) | ds | Dh | C kN | C0 kN | Kg | |
CRBF8022 | 80 | 165 | 124 | 22 | 3.1 | 1 | 114 | 134 | 33.1 | 50.9 | 2.6 |
C . CRBF type Crossed Roller Bearings Details | |||||||||||
Product Features | BYC Crossed roller bearings are lightweight, compact bearings with thinnest possible inner and outer rings with high rigidity, because of its vertical arrangement of cylindrical rollers with a 90°V groove through the separate spacers in the deep groove rolling surface. This special design allows just one bearing to carry loads in all directions including radial, axial and moment loads. | ||||||||||
Series Introduction | CRBF special type is a bearing with integrated inner- and outer ring. It is being used in cases where high rotational accuracy of both the inner- and outer rings is required. | ||||||||||

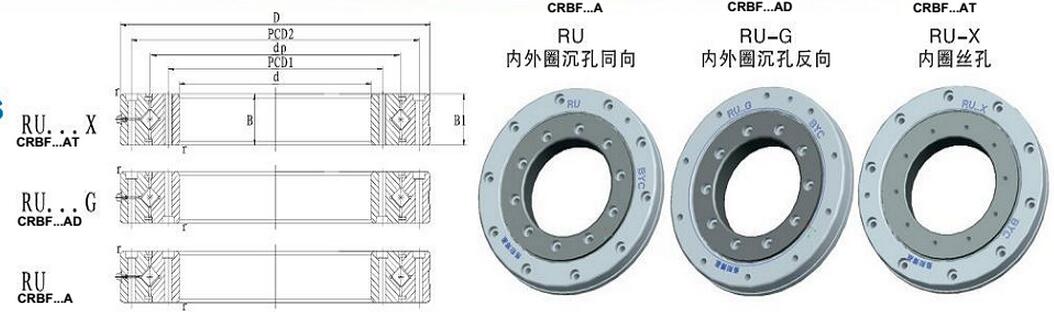

Series Model No. | RU42(CRBF2012),RU66(CRBF3515),RU85(CRBF5515), RU124,RU124G,RU124X(CRBF8022), RU148,RU148G,RU148X RU178,RU178G,RU178X RU228,RU228G,RU228X RU297,RU297G,RU297X RU445,RU445G,RU445X | ||||||||||
Applications | Product Application •Industrial Robotic arm,Reducer drive •precision Turntable,NC rotary table •Rotation part of Machine tools •Inspection instrument,Medical equipment • Aviation equipment,Military radar etc | ||||||||||
D . Installation for Cross roller Bearings | |||||||||||
Installation for Cross roller Bearings-Click Here | |||||||||||
