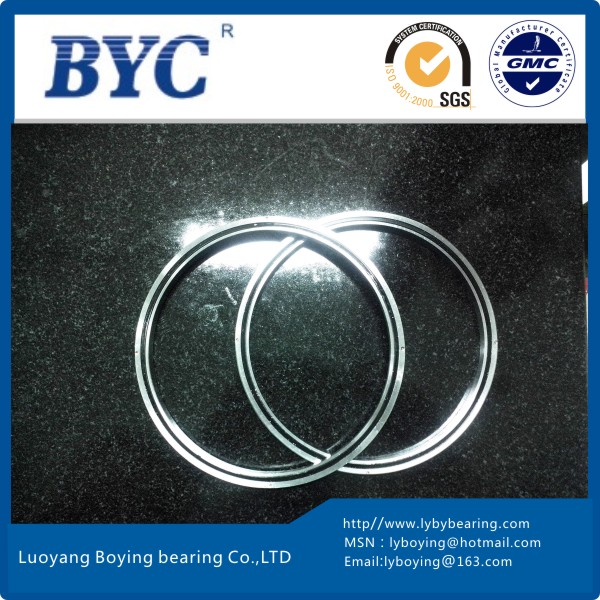

RA10008 UUCC0 (dxDxB:100x116x8mm) Crossed Roller Bearings|Robotic Bearings|BYC | |||||||||||
A . Crossed Roller Bearings Parameters | |||||||||||
Brand- | BYC | ||||||||||
Model number- | RA10008 UUCC0 | ||||||||||
Inner ring(mm)- | 100 | ||||||||||
Outer ring(mm)- | 116 | ||||||||||
Width(mm)- | 8 | ||||||||||
Weight(Kg)- | 0.14 | ||||||||||
Materials- | GCR15/GCR15SiMn | ||||||||||
Precision- | P5/P4/P2 | ||||||||||
Lubrication- | Grease lubrication | ||||||||||
Rotating part- | Inner Ring Rotation | ||||||||||
Load direction- | Multi-load | ||||||||||
Structure- | Outer ring split | ||||||||||
B . RA10008 Crossed Roller Bearings Specification Sheet | |||||||||||
Model Number | Main dimensions | Mounting dimensions | Basic load rating (radial) | weight | |||||||
Inner ring d (mm) | Outer ring D(mm) | Roller pitch circle dp(mm) | Width B(mm) | Greasing hole φ | Chamfer r(min) | ds | Dh | C kN | C0 kN | Kg | |
RA10008 | 100 | 116 | 107 | 8 | 1 | 0.5 | 103.5 | 110.5 | 7.15 | 13.9 | 0.14 |
C . RA type Crossed Roller Bearings Details | |||||||||||
Product Features | BYC Crossed roller bearings are lightweight, compact bearings with thinnest possible inner and outer rings with high rigidity, because of its vertical arrangement of cylindrical rollers with a 90°V groove through the separate spacers in the deep groove rolling surface. This special design allows just one bearing to carry loads in all directions including radial, axial and moment loads. | ||||||||||
Series Introduction | RA thin type is a small and light weight bearing with a very thin wall thickness. It carries heavy loads. Therefore, the bearing housing and pressure flange can be light weight. It is being used in rotary locations such as in robot hands. The outer rings of the RA thin type are separable and fixed by special rivets. | ||||||||||
Series Model No. | RA5008, RA6008, RA7008, RA8008, RA9008,RA10008,RA11008,RA12008,RA13008,RA14008,RA15008,RA16013,RA17013,RA18013,RA19013,RA20013 | ||||||||||
Applications | Product Application •Industrial Robotic arm,Reducer drive •precision Turntable,NC rotary table •Rotation part of Machine tools •Inspection instrument,Medical equipment • Aviation equipment,Military radar etc | ||||||||||
