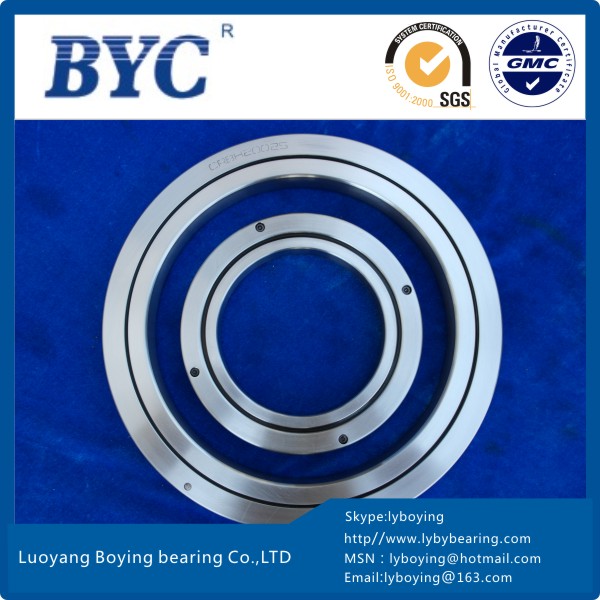

CRBH13025 AUUT1 (dxDxB:130x190x25mm) Crossed Roller Bearings|Robotic Bearings|BYC
Author： Release time：2016-05-23 Browse times：2102
| CRBH13025 AUUT1 (dxDxB:130x190x25mm) Crossed Roller Bearings|Robotic Bearings|BYC | |||||||||||
| A . Crossed Roller Bearings Parameters | |||||||||||
| Brand- | BYC | ||||||||||
| Model number- | CRBH13025 AUUT1 | ||||||||||
| Inner ring(mm)- | 130 | ||||||||||
| Outer ring(mm)- | 190 | ||||||||||
| Width(mm)- | 25 | ||||||||||
| Weight(Kg)- | 2.82 | ||||||||||
| Materials- | GCR15/GCR15SiMn | ||||||||||
| Precision- | P5/P4/P2 | ||||||||||
| Lubrication- | Grease lubrication | ||||||||||
| Rotating part- | Inner ring/Outer ring | ||||||||||
| Load direction- | Multi-load | ||||||||||
| Structure- | Integrated Inner/Outer Ring | ||||||||||
| B . CRBH13025 Crossed Roller Bearings Specification Sheet | |||||||||||
 | |||||||||||
| Model Number | Main dimensions | Mounting dimensions | Basic load rating (radial) | weight | |||||||
| Inner ring d (mm) | Outer ring D(mm) | Roller pitch circle dp(mm) | Width B(mm) | Greasing hole φ | Chamfer r(min) | ds | Dh | C kN | C0 kN | Kg | |
| CRBH13025 | 130 | 190 | 158 | 25 | 1 | 1 | 142 | 178 | 75.9 | 115 | 2.82 |
| C . CRBH type Crossed Roller Bearings Details | |||||||||||
| Product Features | BYC Crossed roller bearings are lightweight, compact bearings with thinnest possible inner and outer rings with high rigidity, because of its vertical arrangement of cylindrical rollers with a 90°V groove through the separate spacers in the deep groove rolling surface. This special design allows just one bearing to carry loads in all directions including radial, axial and moment loads. | ||||||||||
| Series Introduction | CRBH standard type is with an integrated Inner/Outer Ring structure;can be used for both inner-ring rotation and outer-ring rotation. | ||||||||||
| Series Model No. | CRBH5013A,CRBH6013A,CRBH7013A,CRBH8016A,CRBH9016A,CRBH10020A,CRBH11020A,CRBH12025A,CRBH13025A,CRBH14025A,CRBH15025A,CRBH20025A,CRBH25025A | ||||||||||
| Applications | Product Application •Industrial Robotic arm,Reducer drive •precision Turntable,NC rotary table •Rotation part of Machine tools •Inspection instrument,Medical equipment • Aviation equipment,Military radar etc | ||||||||||
| D . Installation for Cross roller Bearings | |||||||||||
| Installation for Cross roller Bearings-Click Here | |||||||||||
| www.lybybearing.com | |||||||||||
| BYC Bearings, Crossed roller bearing , Thin section bearing , Turntable bearing , Roller Bearing ,Bearing ,Slewing bearing ,Robotic bearing ,Rotary Table Bearing , YRT Rotary Table Bearing ,Angular Contact Ball Bearing,Thin section ball bearing | |||||||||||
