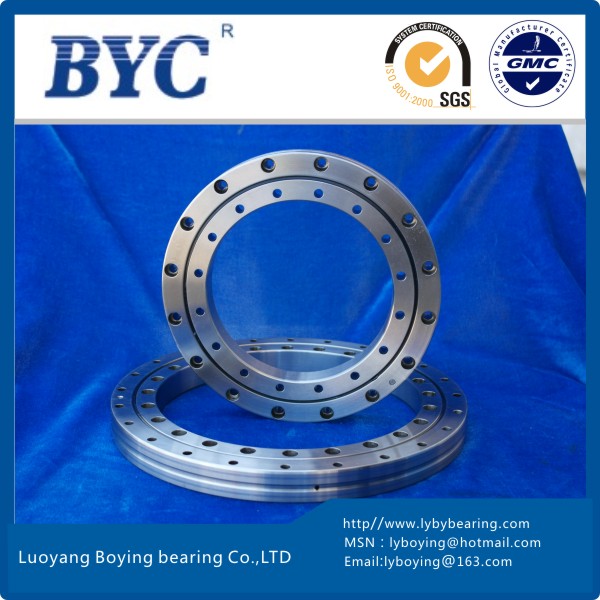

XSU080258 (dxDxB:220x295x25.4mm)Crossed Roller Bearings|Robotic Bearings|BYC
Author： Release time：2016-05-20 Browse times：2158
| XSU080258 (dxDxB:220x295x25.4mm)Crossed Roller Bearings|Robotic Bearings|BYC | |||||||||||||
| A . Crossed Roller Bearings Parameters | |||||||||||||
| Brand- | BYC | ||||||||||||
| Model number- | XSU080258 | ||||||||||||
| Inner ring(mm)- | 220 | ||||||||||||
| Outer ring(mm)- | 295 | ||||||||||||
| Width(mm)- | 25.4 | ||||||||||||
| Weight(Kg)- | 5.1 | ||||||||||||
| Materials- | GCR15/GCR15SiMn | ||||||||||||
| Precision grade- | P5/P4/P2 | ||||||||||||
| Lubrication type- | Grease lubrication | ||||||||||||
| Rotating part- | Inner ring/Outer ring | ||||||||||||
| Load direction- | Multi-load | ||||||||||||
| Structure- | Integrated Inner/Outer Ring,Mounting Hole in Inner/Outer ring | ||||||||||||
| B . XSU080258 Crossed Roller Bearings Specification Sheet | |||||||||||||
 | |||||||||||||
| Model Number | Main dimensions | Fixing Hole (Outer ing) | Fixing Hole (Inner ing) | Basic load rating (Axial) | Basic load rating (Radial) | Weight Kg | |||||||
| Inner ring d(mm) | Outer ring D(mm) | Roller pitch circle dp(mm) | Width B (mm) | φLa | Number na | φLi | Number ni | Ca KN | Coa KN | Cr KN | Cor KN | ||
| XSU080258 | 220 | 295 | 258 | 25.4 | 280 | 24 | 235 | 24 | 84 | 375 | 54 | 151 | 5.1 |
| C . XSU type Crossed Roller Bearings Details | |||||||||||||
| Product Features | BYC Crossed roller bearings are lightweight, compact bearings with thinnest possible inner and outer rings with high rigidity, because of its vertical arrangement of cylindrical rollers with a 90°V groove through the separate spacers in the deep groove rolling surface. This special design allows just one bearing to carry loads in all directions including radial, axial and moment loads. | ||||||||||||
| Series Introduction | XSU special type is a bearing with integrated inner and outer ring. It is being used in cases where high rotational accuracy of both the inner and outer rings is required. | ||||||||||||
| Series Model No. | XSU080168,XSU080188,XSU080218,XSU080258,XSU080318,XSU080398,XSU140414,XSU140544,XSU140644,XSU140744,XSU140844,XSU140944 | ||||||||||||
| Applications | Product Application •Industrial Robotic arm,Reducer drive •precision Turntable,NC rotary table •Rotation part of Machine tools •Inspection instrument,Medical equipment • Aviation equipment,Military radar etc | ||||||||||||
| D . Installation for Cross roller Bearings | |||||||||||||
| Installation for Cross roller Bearings-Click Here | |||||||||||||
| www.lybybearing.com | |||||||||||||
| BYC Bearings, Crossed roller bearing , Thin section bearing , Turntable bearing , Roller Bearing ,Bearing ,Slewing bearing ,Robotic bearing ,Rotary Table Bearing , YRT Rotary Table Bearing ,Angular Contact Ball Bearing,Thin section ball bearing | |||||||||||||
