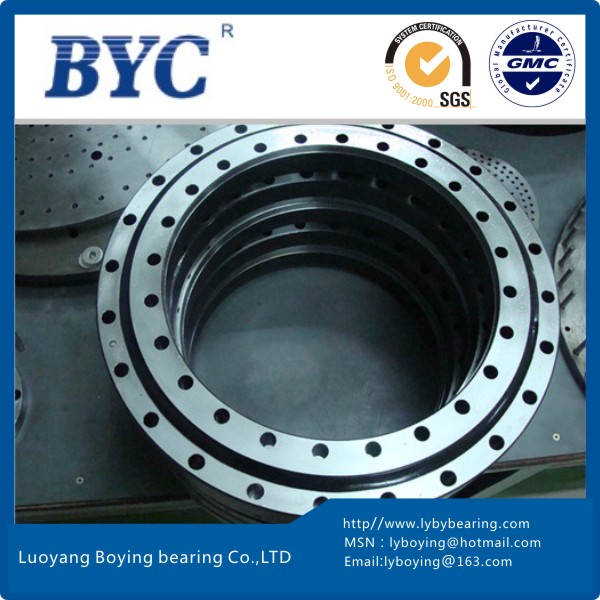

XU060094 (dxDxB:57x140x26mm)Crossed Roller Bearings|Robotic Bearings|BYC
Author： Release time：2016-05-20 Browse times：2178
| XU060094 (dxDxB:57x140x26mm)Crossed Roller Bearings|Robotic Bearings|BYC | |||||||||||||
| A . Crossed Roller Bearings Parameters | |||||||||||||
| Brand | BYC | ||||||||||||
| Model number | XU060094 | ||||||||||||
| Inner ring(mm) | 57 | ||||||||||||
| Outer ring(mm) | 140 | ||||||||||||
| Width(mm) | 26 | ||||||||||||
| Weight(Kg) | 2.4 | ||||||||||||
| Materials | GCR15/GCR15SiMn | ||||||||||||
| Precision grade | P5/P4/P2 | ||||||||||||
| Lubrication type | Grease lubrication | ||||||||||||
| Rotating part | Inner ring/Outer ring | ||||||||||||
| Load direction | Multi-load | ||||||||||||
| Structure | Integrated Inner/Outer Ring,Mounting Hole in Outer ring | ||||||||||||
| B . XU060094 Crossed Roller Bearings Specification Sheet | |||||||||||||
 | |||||||||||||
| Model Number | Main dimensions | Fixing Hole (Outer ing) | Fixing Hole (Inner ing) | Basic load rating (Axial) | Basic load rating (Radial) | Weight Kg | |||||||
| Inner ring d(mm) | Outer ring D(mm) | Roller pitch circle dp(mm) | Width B (mm) | φLa | Number na | φLi | Number ni | Ca KN | Coa KN | Cr KN | Cor KN | ||
| XU060094 | 57 | 140 | 94 | 26 | 120 | 6-φ9 | 70 | 6-M8 | 32.5 | 37.5 | 20.7 | 18.4 | 2.4 |
| C . XU type Crossed Roller Bearings Details | |||||||||||||
| Product Features | BYC Crossed roller bearings are lightweight, compact bearings with thinnest possible inner and outer rings with high rigidity, because of its vertical arrangement of cylindrical rollers with a 90°V groove through the separate spacers in the deep groove rolling surface. This special design allows just one bearing to carry loads in all directions including radial, axial and moment loads. | ||||||||||||
| Series Introduction | XU special type is a bearing with integrated inner and outer ring. It is being used in cases where high rotational accuracy of both the inner and outer rings is required. | ||||||||||||
| Series Model No. | XU050077,XU060094,XU060111,XU080120,XU080149,XU120179,XU120222,XU160260,XU080264,XU160405,XU080430,XU300515 | ||||||||||||
| Applications | Product Application •Industrial Robotic arm,Reducer drive •precision Turntable,NC rotary table •Rotation part of Machine tools •Inspection instrument,Medical equipment • Aviation equipment,Military radar etc | ||||||||||||
| D . Installation for Cross roller Bearings | |||||||||||||
| Installation for Cross roller Bearings-Click Here | |||||||||||||
| www.lybybearing.com | |||||||||||||
| BYC Bearings, Crossed roller bearing , Thin section bearing , Turntable bearing , Roller Bearing ,Bearing ,Slewing bearing ,Robotic bearing ,Rotary Table Bearing , YRT Rotary Table Bearing ,Angular Contact Ball Bearing,Thin section ball bearing | |||||||||||||
